Driving on Public Roads

LV12837-UN-01NOV06

A - Brake Locking Bar

CAUTION: Slow-moving tractors with attachments or towed equipment are difficult to see on public roads. Frequently check for traffic from the rear, especially in turns. Use your turn signals.

1. When driving tractor on roads:

   • Ballast tractor correctly.
   • Clean windows and adjust rear-view mirrors.
   • Use foot throttle instead of hand throttle.



   CAUTION: Use brakes lightly and cautiously when slowing from transport speed.

   IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

2. Tap brake pedal to ensure that differential lock is NOT engaged. Couple brake pedals together using brake locking bar (A). Avoid hard braking application.

3.

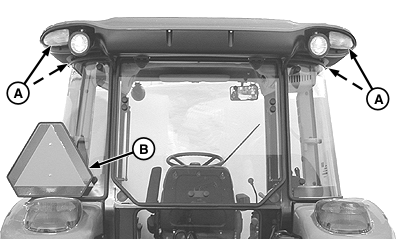

   LV8507-UN-24JUL03

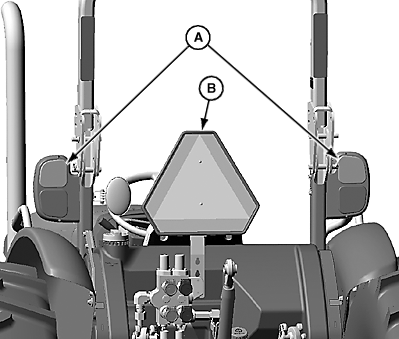

   LV15728-UN-07MAY12

   A - Warning Lights

   B - SMV Emblem

   Check local laws and regulations for lighting requirements. Clean Slow Moving Vehicle (SMV) emblem (B) and warning lights (A). If towed or rear-mounted equipment obstructs view of safety devices, install SMV emblem and warning lights on equipment.

---




4. Disengage front wheel drive when transporting tractor.

5. Loader Cylinders (if equipped): Engage transport lock to eliminate possibility of loader movement during transport by inadvertently bumping the multi-function lever.

6. Rear Hitch: Lock hitch in transport position to eliminate the possibility of lowering an implement during transport by inadvertently bumping the raise-lower lever.

7. Drive slowly to maintain safe control. Before descending a hill, shift to a lower gear to control speed without using brakes. Slow down for rough ground and sharp turns, especially when transporting heavy, rear-mounted equipment.
