Replacing Fuel Filter

1.
   LV16463-UN-04JAN13

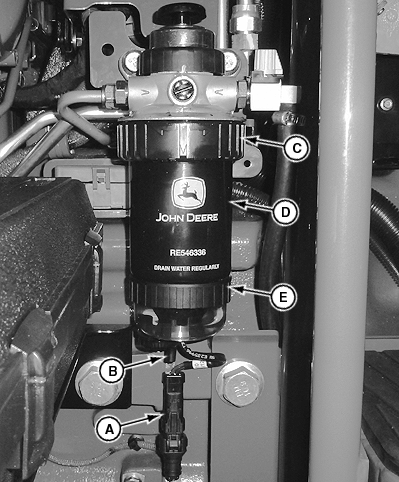

   A - Water Sensor Connector

   B - Drain Valve

   C - Retaining Ring

   D - Fuel Filter

   E - Water Separator

   Disconnect water sensor connector (A).

---




2. Open drain valve (B) and drain fuel.

3. Lift and rotate retaining ring (C) counterclockwise. Remove ring with filter (D).

4. Remove separator (E) from filter.

   1. Drain and clean separator. Dry with compressed air.

   2. Install water separator on new filter.

5. Install new filter assembly. Tighten retaining ring hand-tight.

6. Bleed the fuel system. (See Bleeding Fuel System in Maintenance—As Required/Per Condition section.)
