Using Dome Light

LV8418
LV8418-UN-14JUL03

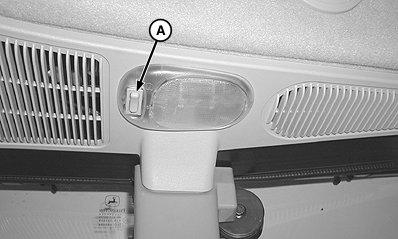

A - Dome Light Switch

Dome light switch (A) has three positions:

  • ON turns on the dome light.
  • Dome light comes on when door is opened and off when door is closed.
  • OFF turns off the dome light.

IMPORTANT: Before exiting cab, turn dome light to OFF or DOOR position to avoid causing battery to lose its charge.

JZ81662,0000F94-19-20130104
