Using Engine Coolant Heater
CAUTION:
TS210-UN-23AUG88
PULV006910-UN-22JUN10

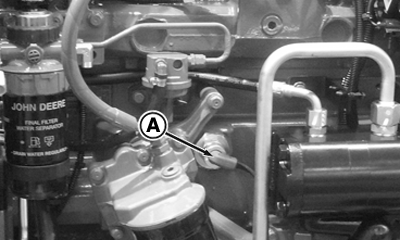

A - Coolant Heater
To avoid shock or hazardous operation, always use a three-wire heavy-duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m [25 ft]) equipped with three connectors. If a two-to-three contact adapter is used at the wall receptacle, connect green wire to a good ground.Immerse element in coolant before connecting heater to power source. NEVER energize heater in air.
Located on side of the engine, the 110-volt coolant heater (A) warms the engine coolant, reduces oil drag, eases starting, and shortens warm-up time.
Connect heater plug to a ground fault protected 110-volt electrical outlet.
|
AI68620,000020E-19-20100903 |
