Operating Brakes

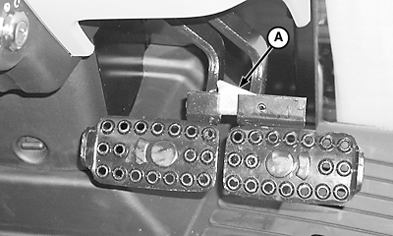

LV12837-UN-01NOV06

A - Brake Pedal Locking Bar

CAUTION: Before operating tractor on a road, lock brake pedals together with locking bar (A). Use brakes lightly and cautiously when slowing from transport speed.

NOTE: Brake pedals shown in locked position.

Use individual brakes to assist in making sharp turns. Disengage brake pedal locking bar (A) and depress only one brake pedal.

To stop tractor, depress both brake pedals.

IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

Reduce speed if towed load weighs more than the tractor and is not equipped with brakes. Avoid hard braking applications. Consult implement operator's manual for recommended transport speeds.

Use additional caution when transporting towed loads under adverse conditions, when turning or when stopping on inclines.
