Preparing Implement

LV9639-UN-11AUG04

A - Category I

B - Category II

When attaching Category I implements to the tractor, sway bars may need adjustment to prevent binding and limiting full raise of the hitch. (See in this section.)

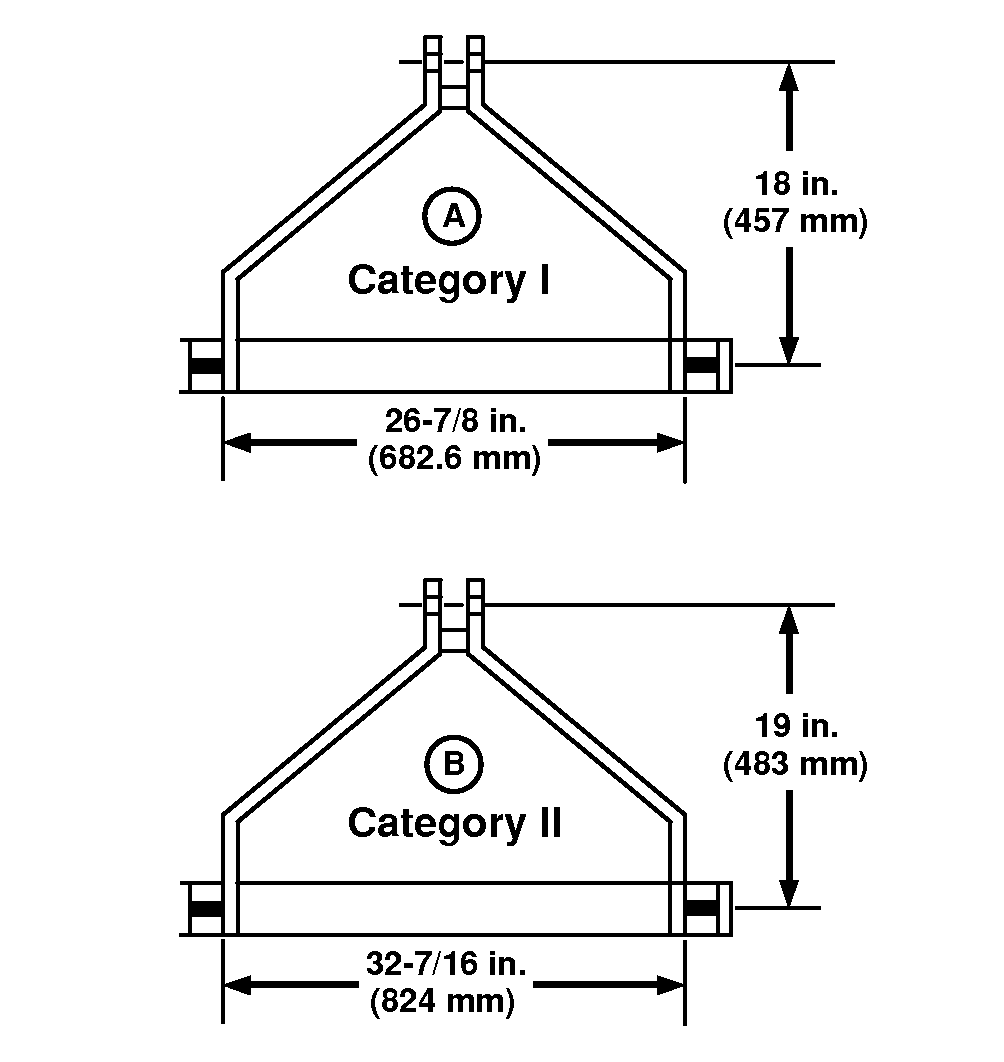

Category I (A), 3-Point Hitch is narrower and is used for smaller implements than Category II (B) implements. (See chart below to identify implement category.)

Category II implements should have the top hole of the implement mast located 483 mm (19 in.) above the lower pins. Drill another hole in top mast or extend top mast if necessary.

Category	Mast Height	Width Between Lower Pins	Pin Size
			Lower	Upper
I (A)	457 mm (18 in.)	682.6 mm (26-7/8 in.)	22 mm (7/8 in.)	19 mm (3/4 in.)
II (B)	483 mm (19 in.)	824 mm (32-7/16 in.)	28 mm (1-1/8 in.)	25.4 mm (1 in.)
