Safety Signs—Cab

WARNING

Avoid serious injury or death resulting from loss of control during transport or braking of a towed implement.

This tractor is capable of operating at transport speeds that may exceed the maximum allowable transport speed for towed implements. If implement manufacturer does not specify maximum transport speed, observe these transport speed limits:

—Implements without brakes: 32 km/h (20 mph)

—Implements with brakes: 40 km/h (25 mph)

Do not exceed the implement's maximum transport speed.

WARNING

AVOID CRUSHING:

• Do not jump if machine tips.

USE SEAT BELT

• Pull belt fully from retractors and adjust for best protection.

To maintain unimpaired operator protection and manufacturer's ROPS certification:

—Damaged ROPS structures must be replaced, not repaired or revised.

—Any alteration to the ROPS must be approved by the manufacturer.

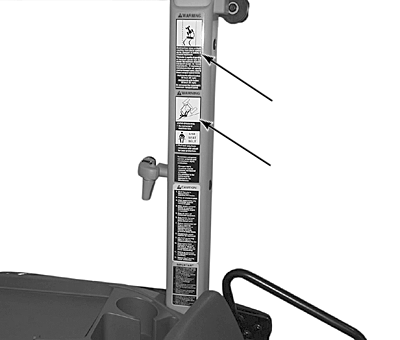

LV14478-UN-28JUL11

Left-Hand Door Post

LV09136-19-07JUL04

LV14479-UN-28JUL11

Left-Hand Door Post

LV5411-19-17NOV00

1. Read Operator's Manual before operating this tractor.
2. Keep all shields in place.
3. Hitch towed loads only to drawbar to avoid rearward upset.
4. Make certain everyone is clear of machine before starting engine or operation.
5. Keep all riders off tractor and equipment.
6. Keep hands, feet and clothing away from power-driven parts.
7. Reduce speed when turning or applying individual brakes or operating around hazards on rough ground or steep slopes.
8. Couple brake pedals together for road travel.
9. Use flashing warning lights on highway unless prohibited by law.
10. Stop engine, lower implement to ground and shift to "PARK" or set handbrake securely before dismounting.
11. Wait for all movement to stop before servicing machinery.
12. Remove key if leaving tractor unattended.
