Adjusting Seat

CAUTION: To avoid accidents, adjust seat before driving.

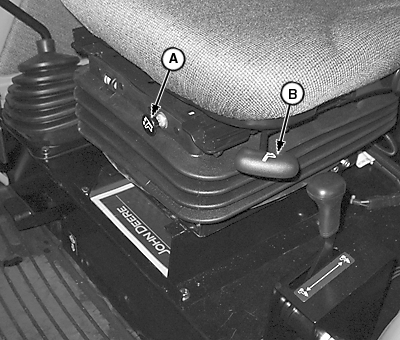

LV14152-UN-25APR11

A - Weight Adjustment Lever

B - Forward/Backward Adjustment Lever

Adjust to each operator's personal preference; there are two available seat adjustments:

Height: While seated, pull adjustment knob (A) out to raise seat. Push adjustment knob to lower seat. Release knob to lock in position.

Forward or Backward: Lift forward/backward adjustment lever (B), move seat to desired position.
