Operating Windshield Wiper and Washer

P13913-UN-22DEC05

LV14166-UN-25APR11

A - Windshield Wiper/Washer Switch

B - Washer Fluid Reservoir

Rotate wiper switch (A) to move windshield wipers to OFF, SLOW, or FAST position.

Push switch to activate windshield washer.

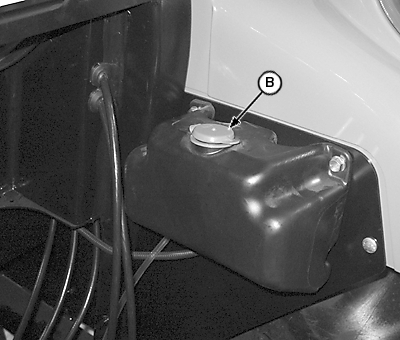

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located behind cab on inside of right rear fender.
