Service Daily Before Start-Up

LV14175-UN-27APR11

A - Engine Oil Dipstick

B - Engine Oil Filler Cap

IMPORTANT: During the first 100 hours of operation, fill with John Deere Diesel Engine Break-In Oil.

1. Check engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and locate oil level. Do not operate when oil level is below lower mark on dipstick. Add seasonal viscosity grade oil through filler hole (B).

2. If operating in extremely wet or muddy conditions, lubricate with multipurpose grease the following at the 10-hour service interval:

   • Front axle pivot pin
   • King pins
   • Rear axle bearings

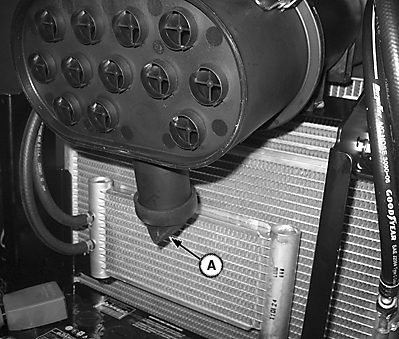

   LV14238-UN-10MAY11

   A - Dust Unloading Valve

---




3. Lubricate hood latch with multipurpose grease. (If necessary, clean first with a pressure washer)

4. Raise hood. Remove and clean dust unloading valve (A). Replace if damaged. Install valve. Lower hood.
