Connecting Cylinder Hoses—Rear SCV

1.

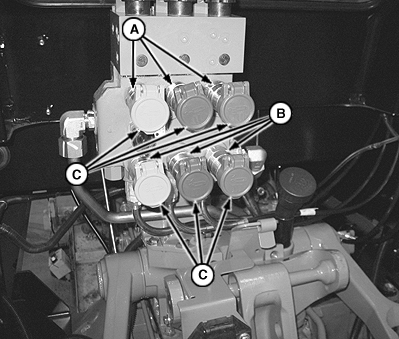

   LV14203-UN-27APR11

   A - Top (Extend) Coupler

   B - Bottom (Retract) Coupler

   C - Dust Plug

   Identify extend and retract hoses. Extend hose should be connected to top coupler (A); retract hose to bottom coupler (B).

---




2. Remove dust caps (if equipped) from hose end.

3. Remove dust plugs (C).

4. CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

   Making sure hose end and coupler are clean, push hose tip firmly into coupler. Pull on hose to make sure positive connection was made.
