Adjusting Drawbar Length and Offset

1.

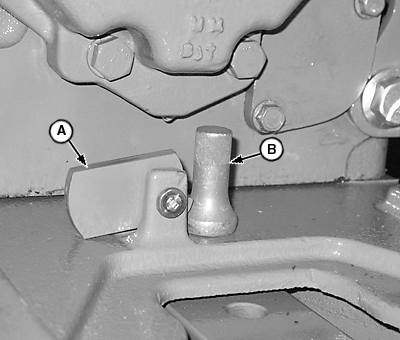

   LV14210-UN-02MAY11

   A - Retaining Latch

   B - Drawbar Pin

   Lift retaining latch (A).

---




2. Remove drawbar pin (B).

3. Slide drawbar to desired position.

   If moving from centered to offset position, remove drawbar and slide through offset slots in support.

4. Install drawbar pin and rotate latch to retain in-place.
