Storing Tractor

IMPORTANT: Anytime tractor will not be used for several months, use this procedure to minimize corrosion and deterioration. Use an AR41785 Engine Storage Kit and an extra 0.95 L (1 pt) of AR41870 Corrosion Inhibitor.

1.
   PULV008078-UN-23JUL10


   PULV007164-UN-28JUL10


   LV14218-UN-03MAY11


   PULV007149-UN-23JUL10

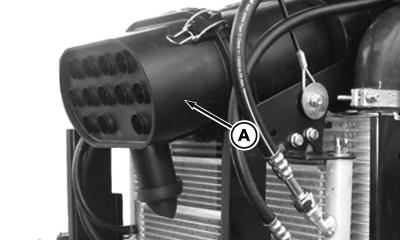

   A - Air Cleaner

   B - Engine Oil Filter

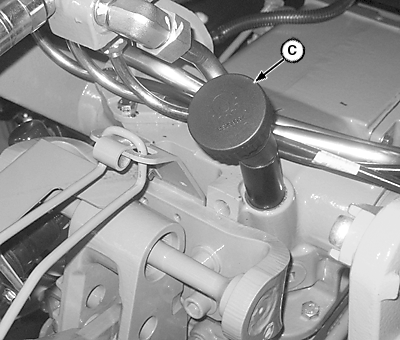

   C - Transmission-Hydraulic System Fill Port

   D - Fuel Tank Filler/Cap

   Service air cleaner (A). (See Replacing Air Cleaner Elements in Section 42 of your Maintenance Guide.)

---




2. If coolant has been in tractor for two years, flush cooling system. (See your John Deere dealer.) Add 50 percent antifreeze-water mixture. Test coolant for adequate cold weather protection.

3. Change engine oil and filter (B). (See Changing Engine Oil and Filter in Section 30 of your Maintenance Guide.)

4. Drain fuel and add back 4 L (1 gal) of fuel. Then add 0.4 L (12 oz) of corrosion inhibitor.

5. Add 0.25 L (9 oz) of corrosion inhibitor to transmission-hydraulic system fill port (C).

6. Depress clutch and start engine. Run engine until it reaches operating temperature. Also raise and lower rockshaft several times. Shut off engine.

7. Add 0.5 L (16 oz) more inhibitor to fuel tank at filler/cap (D).

8.
   LV14219-UN-03MAY11


   PULV007151-UN-23JUL10


   LV14220-UN-03MAY11

   A - Crankcase Filler

   B - Fuel Shut-Off Solenoid Wiring Lead/Connector

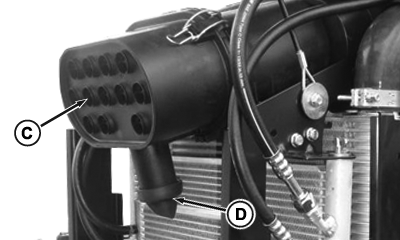

   C - Air Cleaner Inlet Hole

   D - Dust Unloader Valve

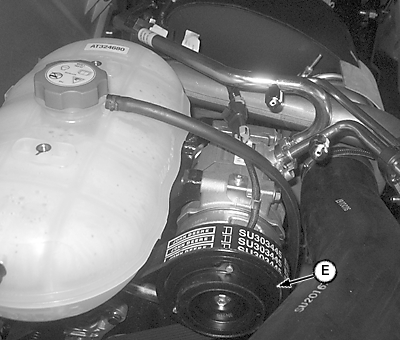

   E - A/C Compressor Pulley

   Add 0.5 L (16 oz) inhibitor to engine crankcase at filler (A).

---




9. Disconnect fuel shut-off solenoid wiring lead/connector (B). (This will prevent engine from starting while cranking.)

10. Remove air intake hose at manifold. Pour 0.1 L (3 oz) inhibitor into manifold and replace hose. Pull hand throttle back to slow idle position. Crank engine only a few revolutions.

11. Remove fan belt after it has cooled.

12. Remove and clean battery. Store in a cool, dry place. Keep battery charged.¹

13. Coat exposed metal surfaces, such as adjustable front axles, if extended, with grease or a corrosion inhibitor.

14. Use tape to seal air cleaner inlet hole (C), dust unloader valve (D), exhaust pipe, crankcase filler, fuel cap, coolant recovery tank, and transmission-hydraulic system filler/cap.

15. Cover dash with opaque material to prevent gauges from fading.

16. Raise tires off ground. Protect them from heat and sunlight.

17. Thoroughly clean tractor. Touch up any painted surfaces that are scratched or chipped.

18. If tractor must be stored outside, cover it with a waterproof material.

19. Rotate A/C compressor pulley (E) several turns once a month to prevent seizure of compressor.
