Check Implement-to-Tire Clearance
IMPORTANT:

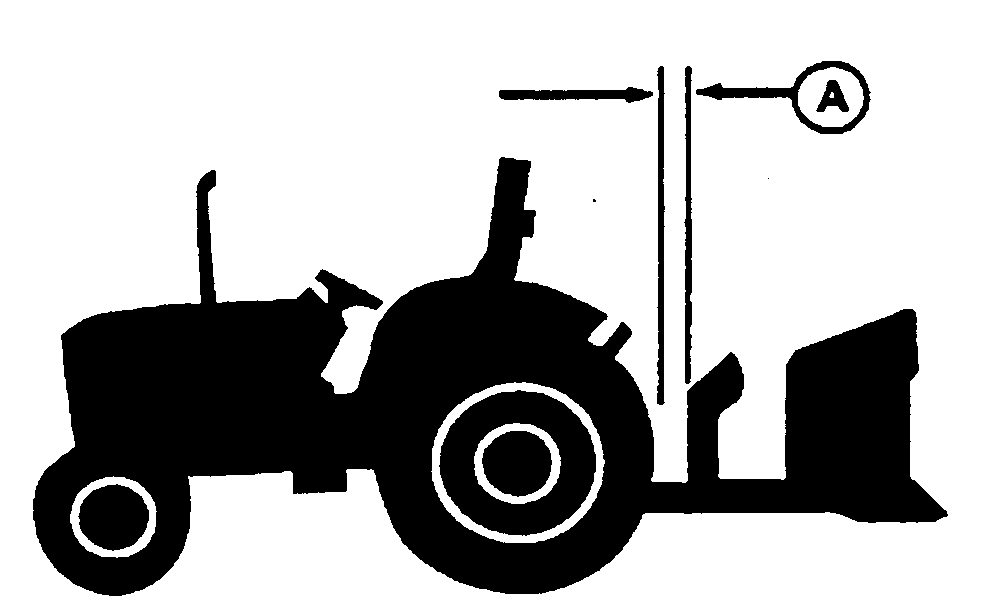

M47177-UN-31JAN92
A - Clearance
When large diameter rear tires are installed on a tractor with a 3-Point Hitch, a quick coupler or similar device is required to provide adequate implement-to-tire clearance.Check for adequate clearance (A) between outside diameter of the tire and implement with hitch in raised position.
|
