Filling Fuel Tank

CAUTION:

TS202-UN-23AUG88

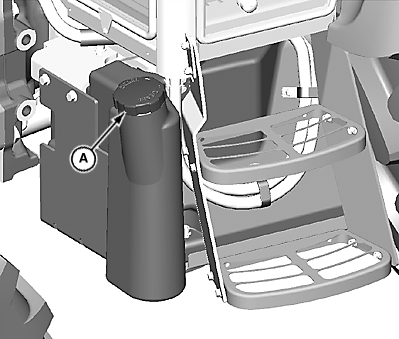

LV15749-UN-10MAY12

Fuel Cap; Cab

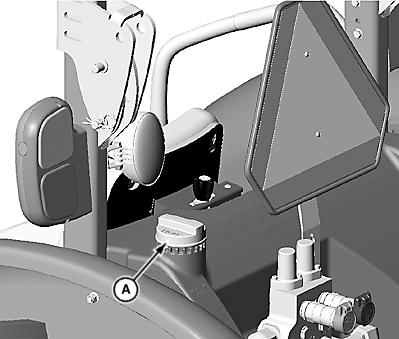

LV15748-UN-10MAY12

Fuel Cap; OOS

A - Vented Fuel Cap

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease and debris. Always clean up spilled fuel.

Fill fuel tank at end of each day's operation. This prevents condensation in tank as moist air cools.

Item	Measurement	Specification
Cab	Capacity	126.8 L (33.5 gal)

Item	Measurement	Specification
Open Operator’s Station	Capacity	96.5 L (26.5 gal)

IMPORTANT: The fuel tank uses a vented filler cap. If a new filler cap is required, always replace it with a vented cap.

NOTE: To reduce fuel gelling and control wax separation during cold weather, John Deere Fuel Flow Improver, or equivalent, may be added to fuel or bulk storage tank.
