Lubricating 3-Point Hitch

LV14236-UN-03MAY11

LV14237-UN-10MAY11

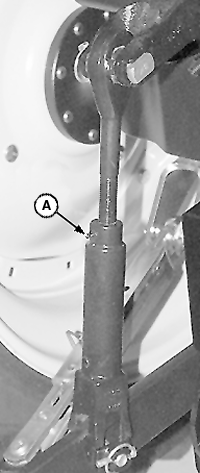

A - Left Link Lift Grease Point

B - Right Lift Link Grease Point

Lubricate fittings on BOTH left and right lift links with several shots of multipurpose grease. (See Grease in Fuel, Lubricants, and Coolant section.)
