Checking MFWD Axle Wheel Hub Oil Level

1.
   PULV000612-UN-19MAR08

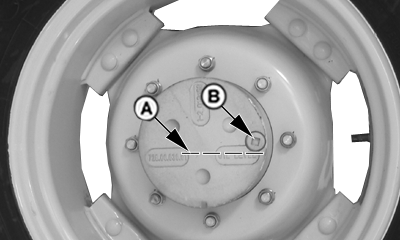

   Oil fill mark and filler plug

   A - Oil fill mark

   B - Oil filler plug

   Park tractor so that oil fill mark (A) on MFWD hub is level with the ground.

---




2. Remove filler plug (B). Oil level should be even with bottom of the filler plug hole.

3. If level is low, add oil through same hole. John Deere Hy-Gard™ oil is recommended. (See MFWD Axle Housing and Wheel Hub Oil, in Section 75.)

   NOTE: Approximate MFWD wheel hub oil capacity is 0.8 L (0.2112 gal).

4. Apply thread sealant to threads of plug.

5. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug-to-Hub	Torque	70 N·m (52 lb-ft)
