Changing MFWD Axle Wheel Hub Oil

PULV000620-UN-19MAR08

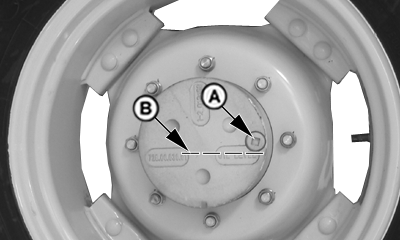

Check oil level

A - Drain/filler plug

B - Oil level

1. Park tractor on level surface, with wheel rotated until drain/filler plug (A) at bottom of hub.

2. Remove plug (A) and drain oil.

3. After oil has drained, move and park tractor so that "OIL LEVEL" mark at drain/filler plug (A) is parallel to ground.

4. Add oil until it reaches level (B) at bottom of drain/filler plug (A). (See MFWD Axle Housing and Wheel Hub Oil, in Fuel, Lubricants, and Coolant section.)

   NOTE: Approximate MFWD wheel hub oil capacity is 0.8 L (0.2112 gal).

5. Apply pipe sealant with thread sealant to threads of plug (A).

6. Install plug and tighten to specifications.

   Item	Measurement	Specification
   Plug to Hub	Torque	70 N·m (52 lb-ft)
