Changing MFWD Axle Housing Oil

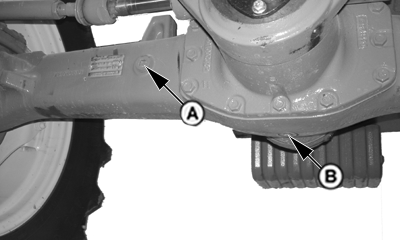

PULV000621-UN-19MAR08

A - Filler plug

B - Drain plug

1. PARK tractor on level ground and SHUT OFF engine. Remove key.

2. Open both plugs (A and B).

3. After oil drained, apply thread sealant on threads of drain plug (B).

4. Install plug (B) and tighten to specifications.

5. Add oil until even with bottom of filler plug (A). (See MFWD Axle Housing and Wheel Hub Oil, in Fuel, Lubricants, and Coolant section.)

   NOTE: Approximate MFWD axle housing oil capacity is 5 L (1.32 gal).

6. Apply thread sealant on threads of filler plug (A).

7. Install filler plug (A) and tighten to specification.

   Item	Measurement	Specification
   Plug to Housing	Torque	70 N·m (52 lb-ft)
