Cleaning Engine Crankcase Vent Tube

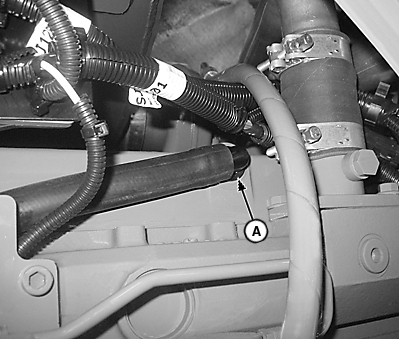

LV14251-UN-10MAY11

Right Side

A - Crankcase Vent Tube

CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

Remove crankcase vent tube (A) from engine. Wash in solvent or blow clean with compressed air. Install vent tube to engine. Be sure vent tube is not kinked or pinched.
