Check Engine Cooling System

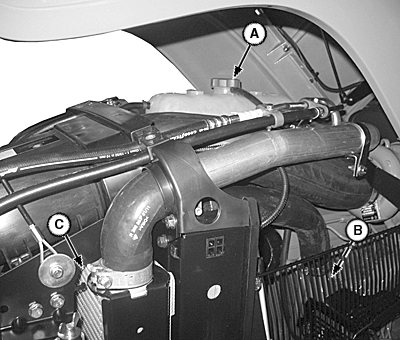

LV14252-UN-11MAY11

A - Coolant Recovery Tank

B - Thermostat Housing

C - Radiator

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

Check cooling system for leaks. Check and tighten all hoses and clamps if required. Inspect thermostat housing (B), radiator (C) and coolant recovery tank (A).

Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.
