Changing Transmission-Hydraulic Oil and Filter

1.
   LV14242-UN-10MAY11


   LV9622-UN-10AUG04


   LV12927-UN-07DEC06

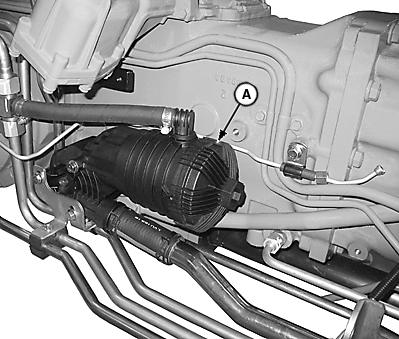

   A - Filter

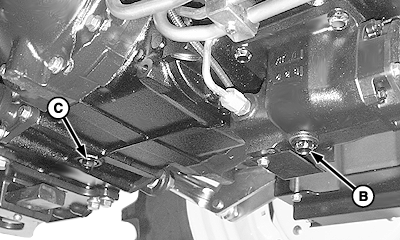

   B - MFWD Drain Plug

   C - Transmission Case Drain Plug

   D - Sight Glass

   Lower rockshaft to remove trapped oil.

---




2. Remove drain plug(s).

   • MFWD Axle—Remove drain plugs (B and C)



   Drain oil into pan and dispose of waste oil properly.

3. Replace filter (A) while changing oil. (See Replacing Transmission-Hydraulic Filter in Section 30.)

4. Fill system with transmission-hydraulic oil. (See Checking Transmission-Hydraulic System Oil Level Section 25.)

   Item	Measurement	Specification
   12/12 PowrReverser™ Transmission	Capacity	43.5 L (11.5 gal)

5. Check oil level at sight glass (D) after filling, and again after operating for five minutes.
