Operate Mechanical Draft Control

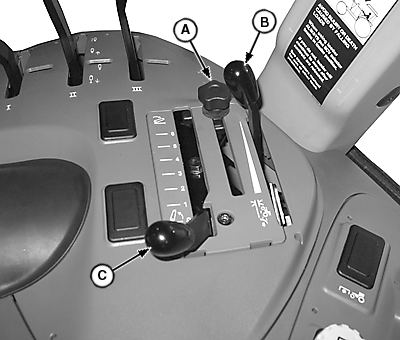

LV14194-UN-27APR11

Cab

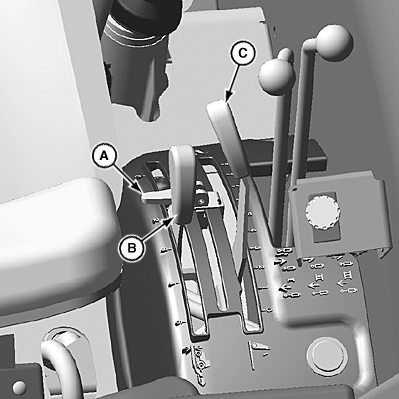

LV15720-UN-17MAY12

Open Operator Station

A - Position Control Stop

B - Draft Control Lever

C - Position Control Lever

The rear hitch is equipped with variable draft control system:

• Operating with a fully mounted implement in hill and swale terrain, the implement will rise and lower to follow the ground contours while maintaining a nearly constant depth.
• Operating in varying soil conditions, the implement is raised slightly to get through tough spots so you do not have to shift to a lower gear.

Change draft sensitivity ranges by repositioning the center link.

For draft load sensing operation:

1. Pull position control lever (C) to its fully rearward position and push the draft control lever (B) to the fully forward (least draft) position.
2. With tractor moving, push position control lever ( C) forward to set implement operating depth.
3. Set position control stop (A). The operating depth set up will prevent the rear hitch from lowering all the way when the tractor begins to slip.
4. Pull draft control lever (B) rearward until desired draft sensing sensitivity is obtained.
5. To slightly raise implement (for getting through slippery spots in a field), push position control lever (C) forward more then the draft control setting.
6. Pull position control lever (C) fully rearward to raise the hitch at the end of the field.
