Keeping Cab Protection System Installed Properly

LV12886-UN-06DEC06

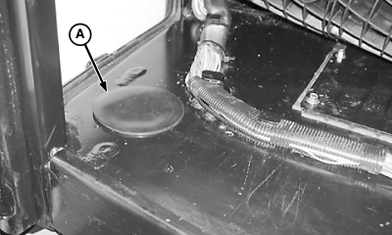

Plug—Front Mount (Left-Hand Side Shown)

A - Plug

SERVICE INTERVAL
	INITIAL — 10 HOURS
	REGULAR — WEEKLY OR 50 HOURS

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, tighten mounting cap screws to specification.

Inspect cab protection system mounting hardware every week or 50 hours for proper torque or replacement.

Lift up rubber floor mat and pry out plugs (A) to access FRONT mounting hardware.

LV12887-UN-06DEC06

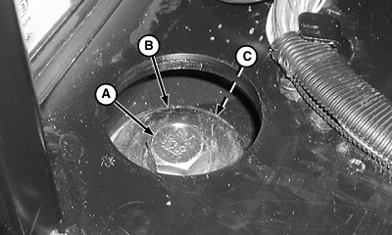

Front Cab Mount

LV8682-UN-26AUG03

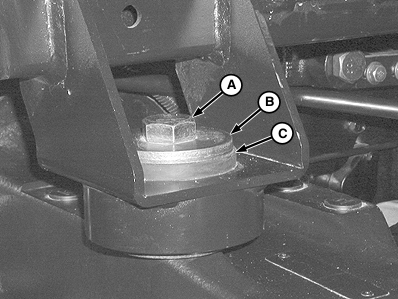

Rear Cab Mount

A - Cap Screw (4 used)

B - Washer (4 used)

C - Isolator (4 used)

Item	Measurement	Specification
Cab Protection System Mounting Cap Screws	Torque	500 N˙m (368 lb-ft)
