Replacing Battery

1.

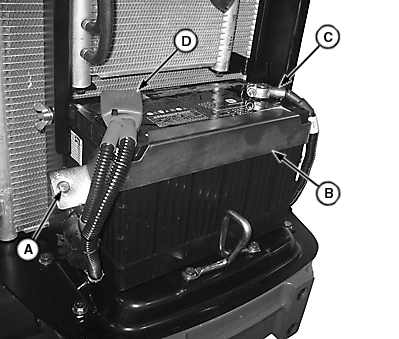

   LV14273-UN-10MAY11

   Battery—Front of Tractor

   A - Cap Screw (2 used)

   B - Battery Hold-Down

   C - Negative (–) Cable

   D - Positive (+) Cable

   Raise hood and remove side screens.

---




2. CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

   WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

   Remove nut and disconnect negative (ground) battery cable (C).

3. Remove nut and disconnect positive cable (D).

4. Loosen cap screws (A) and rotate battery hold-down (B) down.

5. Remove battery.

6. When replacing battery, use John Deere battery or equivalent. (See your John Deere dealer.)

   Item	Measurement	Specification
   Battery	Volts	12 Volts

7. Install battery in reverse order of removal.
