Replacing Headlight Bulb

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See Handling Halogen Light Bulbs Safely in this section.)

1.

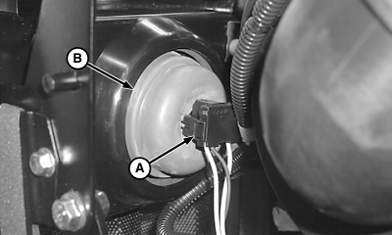

   LV12896-UN-05DEC06


   LV9511-UN-01AUG04


   LV9512-UN-01AUG04

   A - Wiring Harness Plug

   B - Dust Boot

   C - Retaining Spring

   D - Light Bulb

   Raise hood and remove side screen panels.

---




2. Disconnect wiring harness plug (A).

3. Remove dust boot (B).

4. Unlatch retaining spring (C) and remove light bulb (D).

5. Install new bulb in reverse order of removal.

6. Adjust headlights, if necessary.

Adjust Headlight

1.
   PULV000659-UN-05MAY08

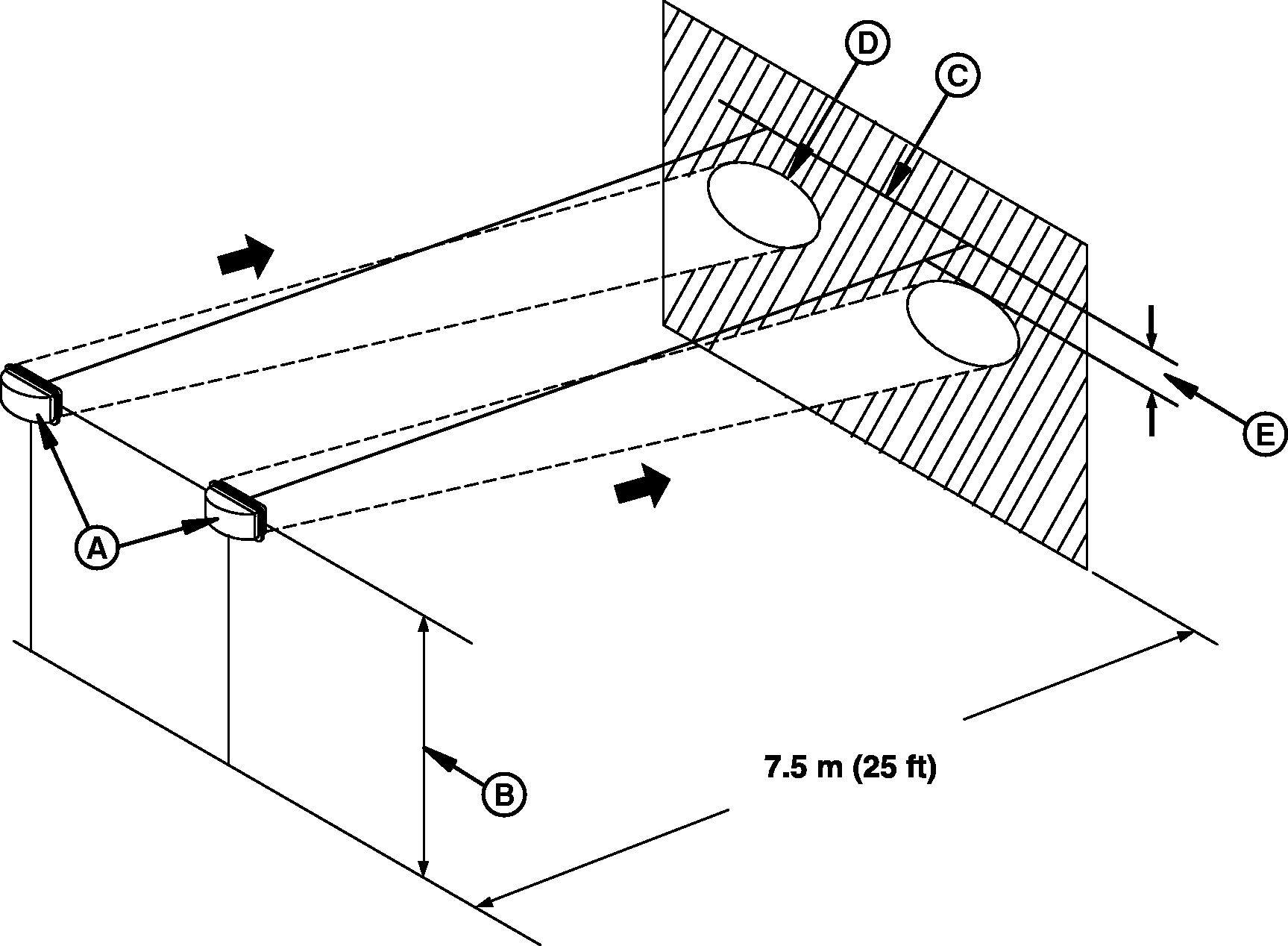

   Headlight Aiming Diagram

   A - Headlights

   B - Distance from Center of Headlight to Ground

   C - Horizontal Line on Wall

   D - Border of Bright Area

   E - 10% of Distance (B)

   Park the tractor on a level surface with headlights (A) 7.5 m (25 ft) from a vertical wall.

---




2. Measure the distance (B) from the center of a headlight to the ground.

3. Mark a horizontal line (C) on the wall, the same distance from the ground as (B).

4. Set headlights on low beam and observe bright areas on the wall.

5. Use screws at the back of lights for adjustment.
