Replacing Warning Light Bulb—Cab

LV5559-UN-29NOV00

LV5560-UN-29NOV00

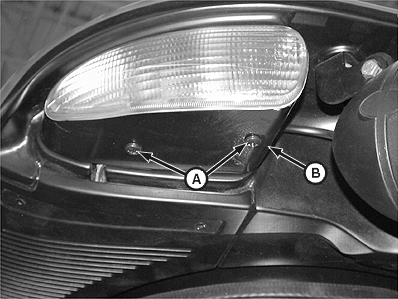

A - Mounting Screw (2 used)

B - Housing

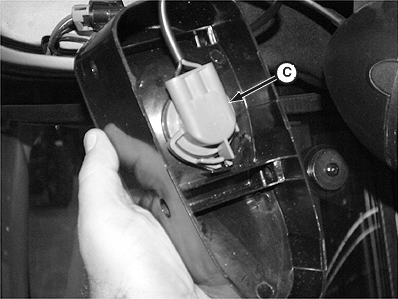

C - Bulb and Socket

NOTE: Bulb replacement procedures for front and rear warning lights are the same. Rear left side shown.

1. Remove mounting screws (A) securing housing (B) to cab roof.

2. Remove bulb and socket (C) from housing.

3. Pull bulb from socket.

4. Install new bulb and socket into housing.

5. NOTE: If equipped with auxiliary work light kit: Apply thread lock and sealer (medium strength) to threads of mounting screws (A).

   Install housing and screws to cab roof.
