Replacing Taillight Bulb—Cab

1.

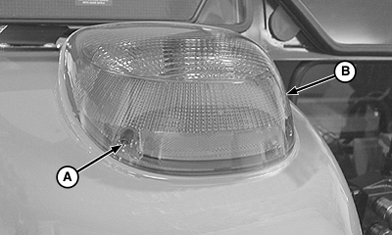

   LV12531-UN-13APR05

   Left Side Shown

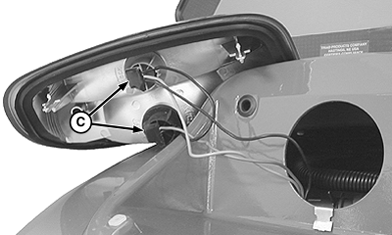

   LV12532-UN-13APR05

   A - Screw (2 used)

   B - Housing

   C - Socket (2 used)

   Remove screws (A).

---




2. Pull housing (B) away from fender.

3. Rotate socket (C) and remove from housing.

4. Pull bulb to remove from socket.

5. Install new bulb and socket in housing.

6. Install housing and screws to fender.
