Replacing Loader Light Bulb—If Equipped

CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See Handling Halogen Light Bulbs Safely in this section.)

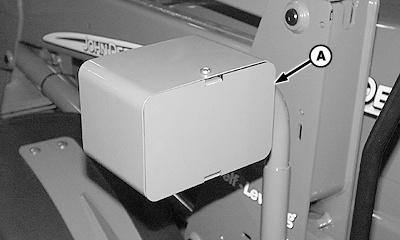

  1. LV9548
    LV9548-UN-03AUG04

    A - Cover

    Remove two screws and cover (A).


  2. LV9549
    LV9549-UN-03AUG04

    LV9550
    LV9550-UN-03AUG04

    LV9512
    LV9512-UN-01AUG04

    A - Dust Boot

    B - Wiring Harness Plug

    C - Retaining Spring

    D - Light Bulb

    Disconnect wiring harness plug (B).


  3. Remove dust boot (A).

  4. Unlatch retaining spring (C) and remove light bulb (D).

  5. Install new bulb in reverse order of removal.

  6. Adjust, if necessary.
