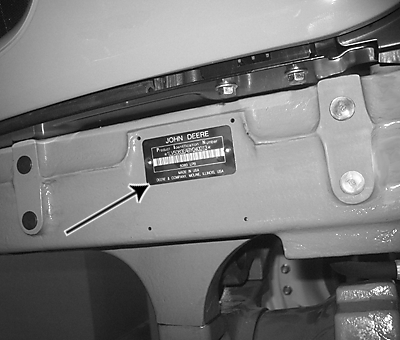

Record Product Identification Number

LV14221-UN-03MAY11

Product Identification Number

Each machine has its own unique Product Identification Number (PIN). The PIN number is broken down as follows:

1

L

V

5

0

8

3

E

#

#

A

1

1

0

0

0

1

WMC

Build Factory

Machine Series

Engine Hp

Machine Family

Check Letter

Calendar Year

Transmission Identifier

Model Year

Operator Station Identifier

Build Sequence

Model Number

Serial Number

WMC: World Manufacturing Code.

Build Factory: represents manufacturing location.

Machine Series: represents machine series.

Engine Hp: represents approximate engine horsepower.

Machine Family: represents overall machine configuration.

Check Letter: calculated based on values and positions of the other characters in the PIN.

Calendar Year = represents calendar year of manufacture (2010 = A, 2031 = 1, 2041 = A again).

Transmission Identifier = represents options of the drive train (transmission, rear PTO, and front axle).

Model Year = represents number of years manufactured.

Operator Station = represents style of cab or open operation station.

Build Sequence = represents consecutive number of machines built with same machine series through operator station identifier.

Model Number: made up of series, Hp, and family; example shown 5083E.

Serial Number: made up of model year, operator station, and build sequence; example shown 110001.
