Adjusting Operator Seat

CAUTION: To avoid accidents, adjust seat before driving.

LV15700-UN-20APR12

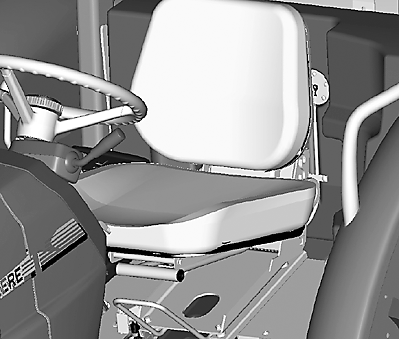

Operator's Seat

LV15698-UN-20APR12

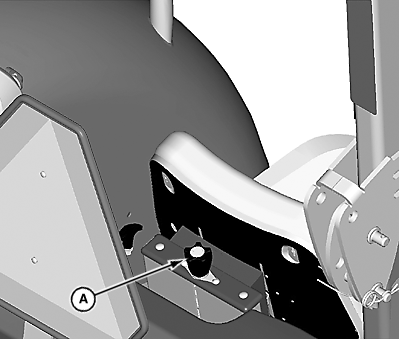

Ride Comfort

LV15701-UN-20APR12

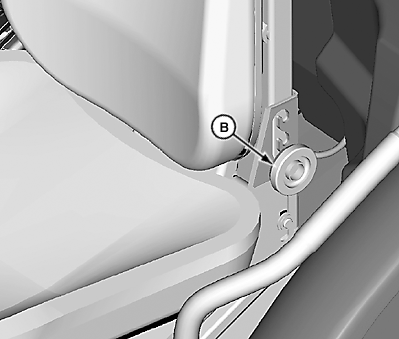

Seat Height Position

LV15702-UN-20APR12

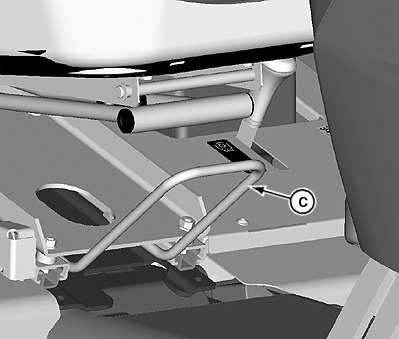

Forward/Backward

A - Ride Comfort Knob

B - Seat Height Knobs

C - Forward/Backward Bar

Ride Comfort: Turn knob (A) to adjust seat suspension for firm or soft ride.

Seat Height: Loosen knob (B) on both sides, lift seat from hooked slots and move to desired height. Tighten knobs after adjustment.

Forward/Backward: Pull up on bar (C) and slide seat forward or back to desired position. Release bar to lock seat in place.
