Adjusting Steering Wheel Tilt and Height

LV15707-UN-27APR12

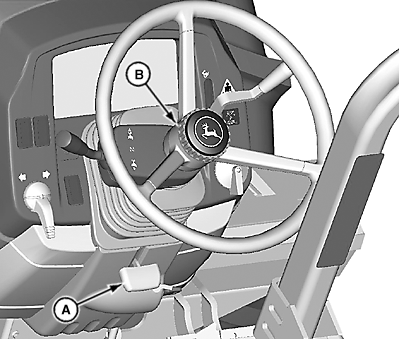

Steering Wheel Adjustment

A - Steering Wheel Tilt Lever

B - Steering Wheel Telescope Release Ring

Lift steering wheel tilt lever (A) and move steering column to desired angle. Release lever to lock into position.

Loosen steering wheel telescope release ring (B) and adjust steering wheel to desired height. Tighten ring to lock into position.
