Front Console Switches and Controls

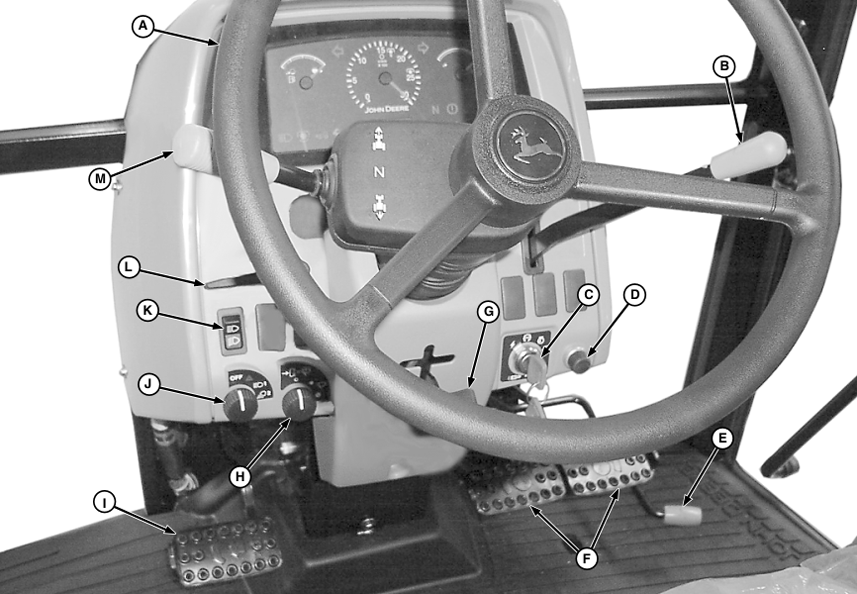

Cab

LV12899-UN-06DEC06

A - Steering Wheel

B - Hand Throttle

C - Ignition Switch

D - Horn (Optional)

E - Foot Throttle

F - Brake Pedals

G - Steering Wheel Tilt Lever

H - Windshield Wiper/Washer Control

I - Clutch Pedal

J - Light Switch

K - Work Light Switch

L - Turn Signal Lever

M - EH Directional Reverser Lever

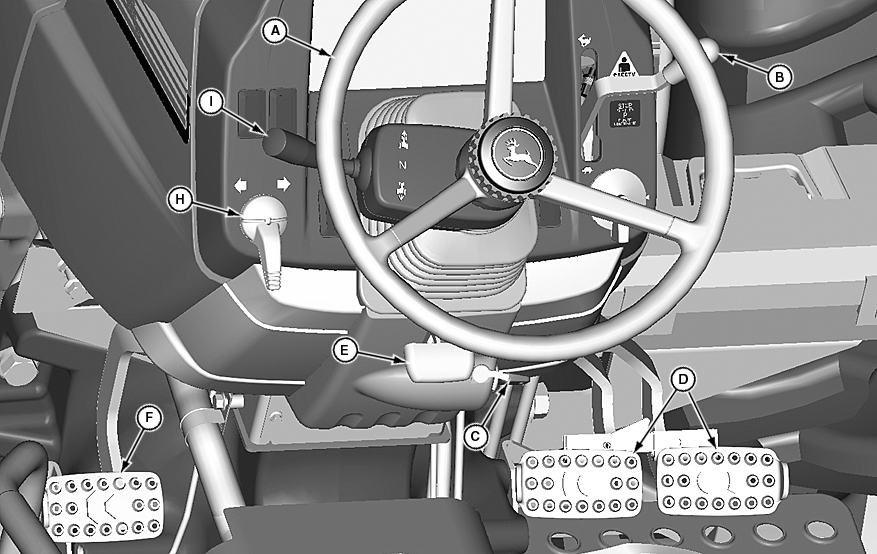

Open Operator Station (OOS)

LV15722-UN-03MAY12

A - Steering Wheel

B - Hand Throttle

C - Ignition Switch

D - Brake Pedals

E - Steering Wheel Tilt Lever

F - Clutch Pedal

G - Light Switch

H - Turn Signal Lever

I - EH Directional Reverser Lever
