Tractor Controls—Cab

Right-Hand Console

NOTE: The rockshaft rate-of-drop knob (I) is located behind driver’s seat on lower right-hand side.

LV14142-UN-25APR11

LV14143-UN-25APR11

LV14144-UN-25APR11

LV15713-UN-27APR12

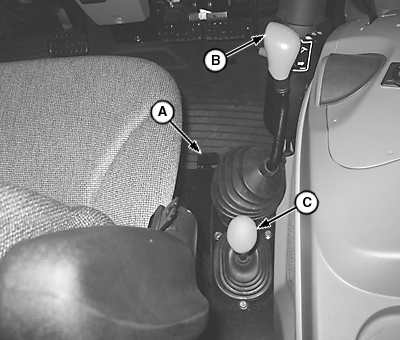

A - Differential Lock Pedal

B - Gear Shift Lever

C - Range Shift Lever

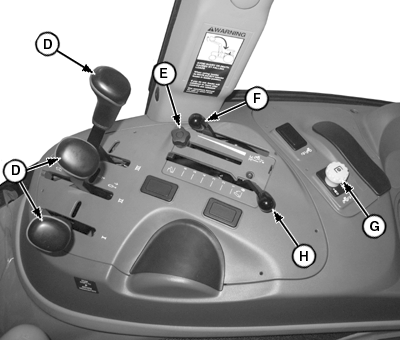

D - SCV Control Levers

E - Position Control Stop Knob

F - Rockshaft Draft Control Lever

G - EH PTO Control

H - Rockshaft Position Control Lever

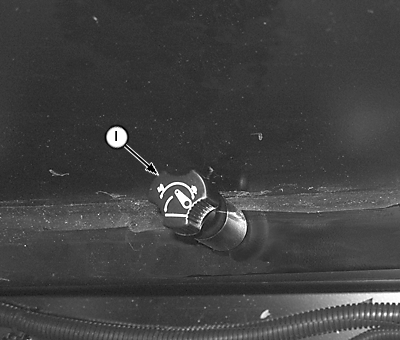

I - Rockshaft Rate-of-Drop Knob

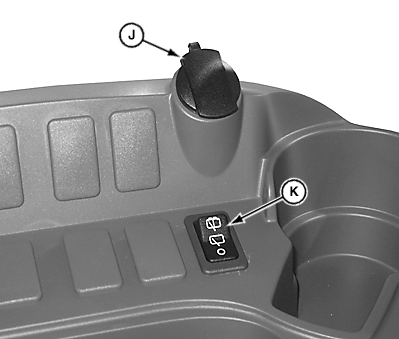

J - 12-Volt Accessory Electrical Outlet

K - RearWindshield Wiper Control Switch (If Equipped)

Left Side Controls

LV14150-UN-25APR11

LV15783-UN-18MAY12

540/540E PTO Shift Lever

A - Mechanical Front Wheel Drive (MFWD) Lever

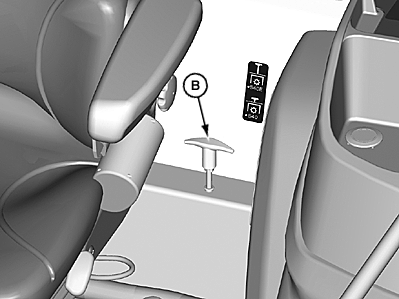

B - 540/540E PTO Shift Lever
