Gauges and Indicator Lights

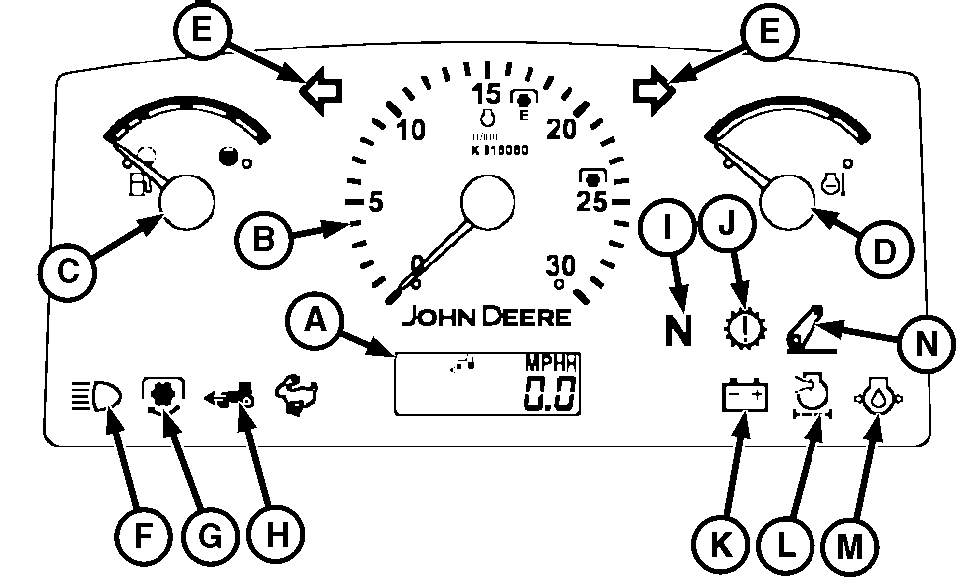

LV14176-UN-27APR11

A - Speedometer/Hour Meter

B - Tachometer

C - Fuel Level Gauge

D - Coolant Temperature Gauge

E - Warning/Turn Signal Indicators

F - High Beam Indicator

G - PTO Engaged Indicator

H - MFWD Engaged Indicator

I - Neutral Indicator

J - PowrReverser™ Information Indicator

K - Charging System Indicator

L - Air Cleaner Restriction Indicator

M - Engine Oil Pressure Indicator

N - Electrohydraulic Hitch Indicator

A	Speedometer/Hour Meter	Indicates vehicle speed.
B	Tachometer	Indicates engine speed, revolutions per minute (RPM).
C	Fuel Level Gauge	Indicates amount of fuel remaining in tank.
D	Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have John Deere dealer diagnose vehicle.
E	Turn Indicator	Illuminates when turn signal switch is switched to right-hand or left-hand side.
F	High Beam Indicator	Illuminates when the headlights are switched on high beam.
G	PTO Engaged Indicator	Illuminates when PTO is engaged.
H	MFWD Engaged Indicator	Illuminates when MFWD is engaged.
I	Neutral Indicator	Illuminates when transmission reverser (if equipped) in neutral position. Flashes when operator improperly shifted reverse. If necessary, cycle reverser lever back to neutral. If flashing and Transmission Information indicator are illuminated at the same time, this indicates a malfunction (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
J	PowrReverser™ Information Indicator	Illuminates when PowrReverser™ malfunction occurs. SHUT OFF engine IMMEDIATELY and determine cause (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
K	Charging System Indicator	Illuminates when alternator malfunction occurs. If necessary, have John Deere dealer diagnose vehicle.
L	Engine Air Cleaner Restriction Indicator	Illuminates when air cleaner element clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.
M	Engine Information Indicator	Illuminates when engine malfunction occurs (check oil level). If necessary, have John Deere dealer diagnose vehicle.

N

Electrohydraulic Hitch Indicator

Illuminates when hitch malfunction occurs (review error message in Information Display). If necessary, have John Deere dealer diagnose vehicle.
