Tractor Controls—OOS

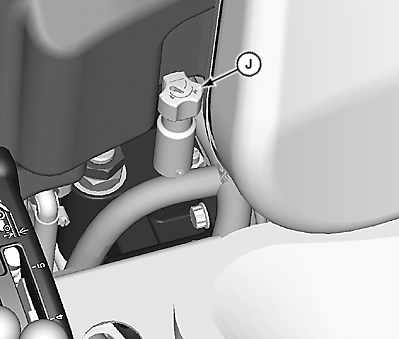

NOTE: The rockshaft rate-of-drop knob (J) is located behind driver’s seat on lower right-hand side.

LV15712-UN-27APR12

LV15711-UN-21MAY12

LV15715-UN-27APR12

LV15714-UN-27APR12

Left-Hand Controls

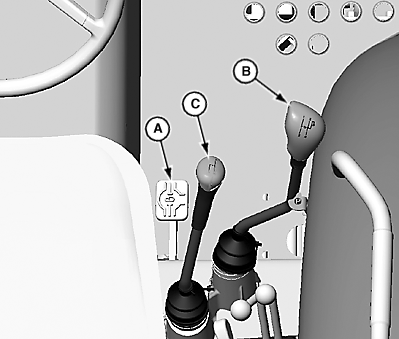

A - Differential Lock Pedal

B - Gear Shift Lever

C - Range Shift Lever

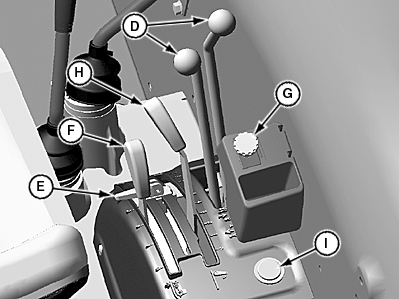

D - SCV Control Levers

E - Position Control Stop Lever

F - Rockshaft Draft Control Lever

G - EH PTO Knob

H - Rockshaft Position Control Lever

I - 12-Volt Accessory Outlet

J - Rockshaft Rate-of-Drop Knob

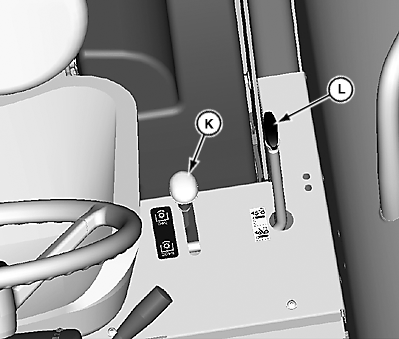

K - 540/540E PTO Shift Lever

L - Mechanical Front Wheel Drive (MFWD) Lever
