Operating Ignition Switch

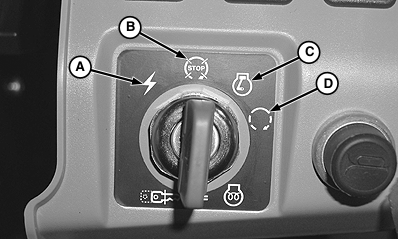

LV12807-UN-01NOV06

Cab

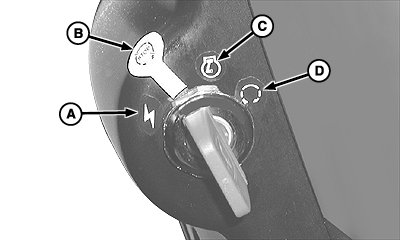

LV09199-UN-22JUL04

OOS

A - Accessory Position

B - Stop Position

C - Run Position

D - Start Position

Accessory Position (A): Turn key to ACCESSORY position to power electrical functions.

Stop Position (B): Turn key to STOP position to turn off electrical accessories and to shut down engine.

Run Position (C): Turn key to RUN position. Check to ensure that indicator bulbs light, instrument indicator dials momentarily move, and that there is an audible beep before advancing to START position. Also use RUN position to activate cold weather starting devices. If temperature is below 5°C (41°F), refer to Cold Weather Starting procedure in this section.

Start Position (D): Turn key to START position to crank and start engine. Key returns to RUN position when released.
