Operating Lights

Cab

P13875-UN-19DEC05

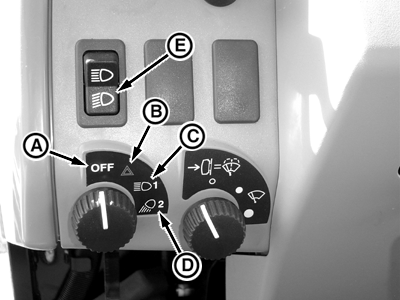

A - Off Position

B - Warning Light Position

C - Bright Headlight Position

D - Work Light Position

E - Headlight Dimmer Switch

Tractor light switch has three operating positions:

Warning position (B): Use when transporting on public roads during daylight hours.

Bright headlight position (C): Use when traveling on public roads at night or during daylight hours when visibility is limited.

CAUTION: Do not use work lights when transporting on public roads. Bright clear lights can blind or confuse drivers of other vehicles as they approach from the front or rear.

Work light position (D): Use to activate front and rear facing work lights, and high beam headlights.

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Keep headlights properly adjusted. See ADJUST HEADLIGHTS in Maintenance—As Required/Per Condition section, Replacing Headlight Bulb.

Switch Position	Warning Lights Amber1	Taillights Red1	Work Light(s) Rear Facing	Work Light(s) Front Facing	Headlights
A–Off	Off	Off	Off	Off	Off
B–Warning	On Flashing	On Steady	Off	Off	Off
C–Bright Headlight	On Flashing	On Steady	Off	Off	On–High Beams2
D–Work Light	Off	On Steady	On	On	On–High Beams2

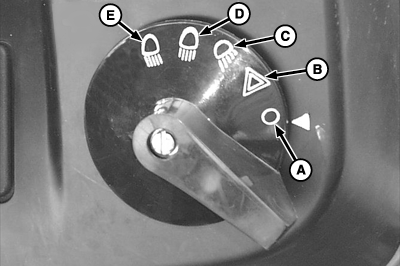

Open Operator Station (OOS)

LV09152-UN-12JUL04

Light Switch

LV09155-UN-12JUL04

A - Off Position

B - Warning Position

C - Work Light Position

D - Transport 1 Position

E - Transport 2 Position

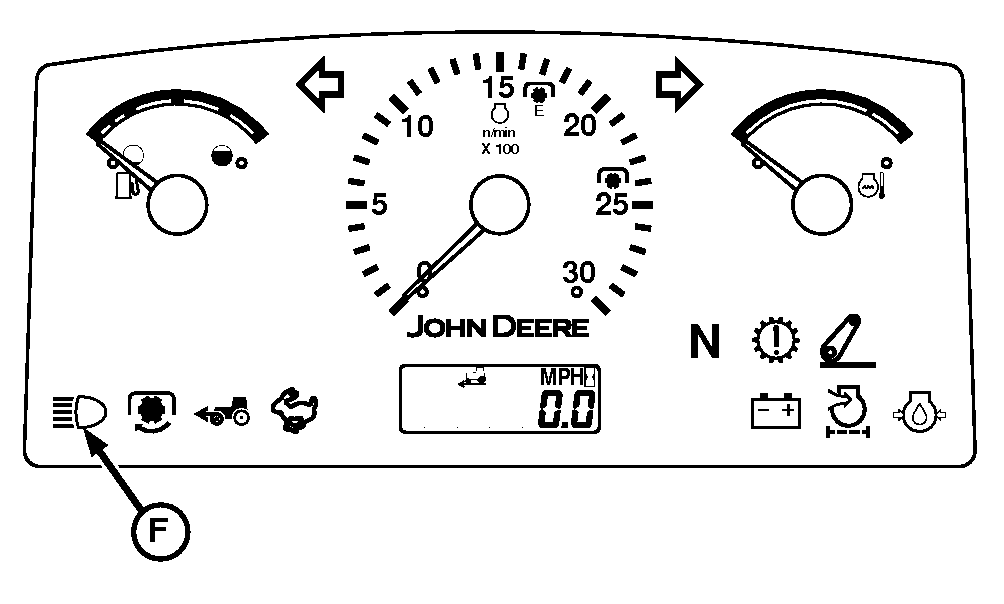

F - High Beam Indicator Light

CAUTION: To alert drivers of other vehicles to your movements, use flashing warning lights whenever you travel on public roads. Flashing lights come ON in Warning, Transport 1, and Transport 2 positions.

Light switch has four operating positions:

Warning position (B): Use when transporting on public roads during daylight hours.

CAUTION: Do not use work lights when transporting on public roads. Bright clear lights can blind or confuse drivers of other vehicles as they approach from the front or rear.

NOTE: Indicator (F) lights whenever high beam headlights are ON.

Work Light position (C): Use to activate front (cab) and rear facing work lights and high beam headlights.

Transport 1 position (D): Use when traveling on public roads at night or during daylight hours when visibility is limited.

Transport 2 position (E): Use to dim headlights to low beams when meeting other vehicles as they approach from the front.

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Keep headlights properly adjusted. See ADJUSTING HEADLIGHTS in Section 105, Replacing Headlight Bulb.

Switch Position	Warning Lights Amber1	Tail Lights Red1	Work Lights3 Rear Facing	Work Lights Front Facing	Headlights Front Grille
A—Off	Off	Off	Off	Off	Off
B—Warning	On Flashing	Off	Off	Off	Off
C—Work Light	Off	Off	On	On	On—High Beams
D—Transport 1	On Flashing	On Steady	Off	Off	On—High Beams
E—Transport 2	On Flashing	On Steady	Off	Off	On—Low Beams
