Before Starting the Engine

CAUTION:

TS220
TS220-UN-15APR13

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

  1. Check fuel gauge.

  2. LV14177
    LV14177-UN-27APR11

    Gear and Range Shifter Levers (Cab shown; OOS similar)

    LV14178
    LV14178-UN-27APR11

    EH Directional Reverser Lever (Cab shown; OOS similar)

    A - Gear Shift Lever

    B - Range Shift Lever

    C - EH Directional Reverser Lever

    Transmission Controls: Put gear shift lever (A) in NEUTRAL or PARK and range shift lever (B) in NEUTRAL.

    PowrReverser™Transmission: Put electro-hydraulic (EH) directional reverser lever (C) in NEUTRAL.


  3. LV14213
    LV14213-UN-02MAY11

    EH PTO Knob (Cab)

    LV15726
    LV15726-UN-18MAY12

    EH PTO Knob (OOS)

    A - EH PTO Knob

    EH PTO Control:Push PTO Switch knob (A) down to disengage.


  4. LV14179
    LV14179-UN-03MAY11

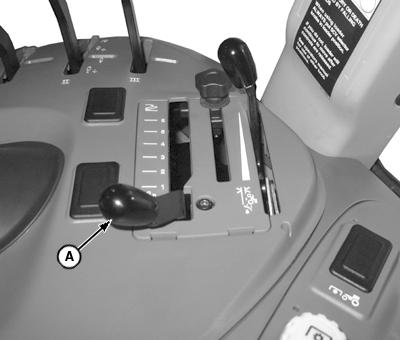

    Hitch Control Lever (Cab)

    LV15784
    LV15784-UN-18MAY12

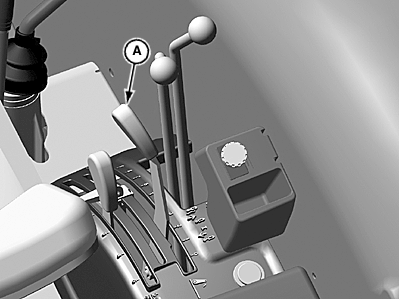

    Hitch Control Lever (OOS)

    A - Hitch Control Lever

    Push hitch control lever (A) forward to lower equipment to the ground.


  5. Turn key to RUN position and check to see if all indicators light. (If any indicator does not light, see your John Deere dealer.)
