Stopping the Engine

IMPORTANT: Certain engine parts are cooled by engine oil. Stopping a hot engine could cause damage by overheating or lack of lubrication.

  1. LV12797
    LV12797-UN-04OCT06

    Hand Throttle (Cab shown; OOS similar)

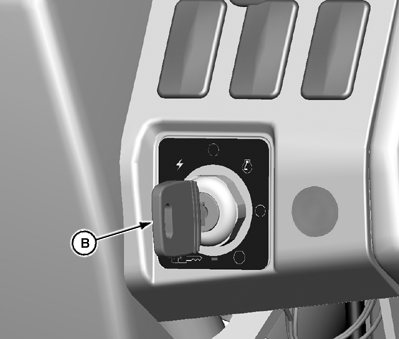

    LV15734
    LV15734-UN-07MAY12

    Key Switch (Cab shown; OOS similar)

    A - Hand Throttle

    B - Key Switch

    Pull hand throttle (A) back to slow idle.


  2. Put gear shift lever in PARK, and allow engine to idle for 2—5 minutes.

  3. For PowrReverser™ Transmission, put EH directional reverser lever in NEUTRAL.

  4. Lower all equipment to the ground, put all SCV levers in NEUTRAL, and disengage PTO.

  5. Turn key switch (B) to STOP and remove from switch.

PowrReverser is a trademark of Deere & Company

JZ81662,0000BBF-19-20120504
