SCV Control Lever and Coupler Identification

LV14201-UN-27APR11

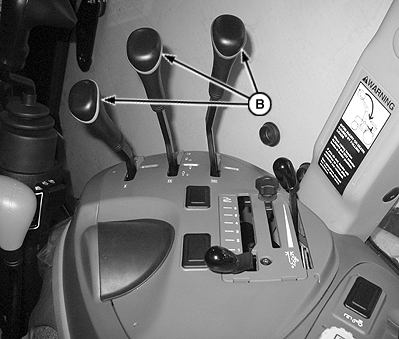

Rear SCV (Cab)

LV14202-UN-27APR11

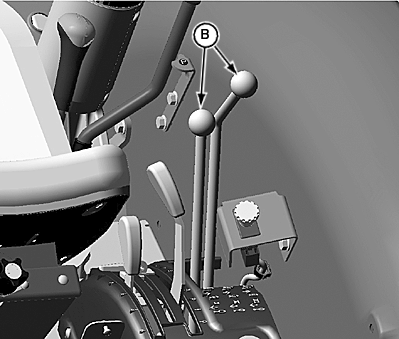

LV15741-UN-08MAY12

Rear SCV Control Levers (OOS)

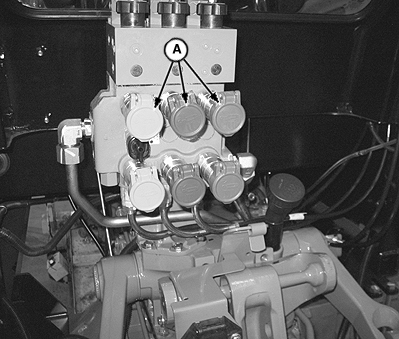

A - Rear SCV Couplers

B - Rear SCV Control Lever

SCV control lever (B) controls oil flow to corresponding SCV couplers, located at the rear of tractor. Top couplers are extend; bottoms coupler are retract.
