Operating Tractor PTO

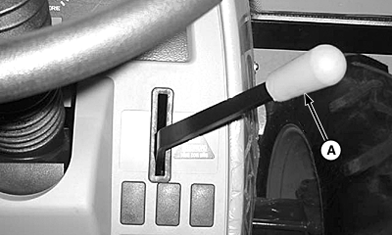

LV12797-UN-04OCT06

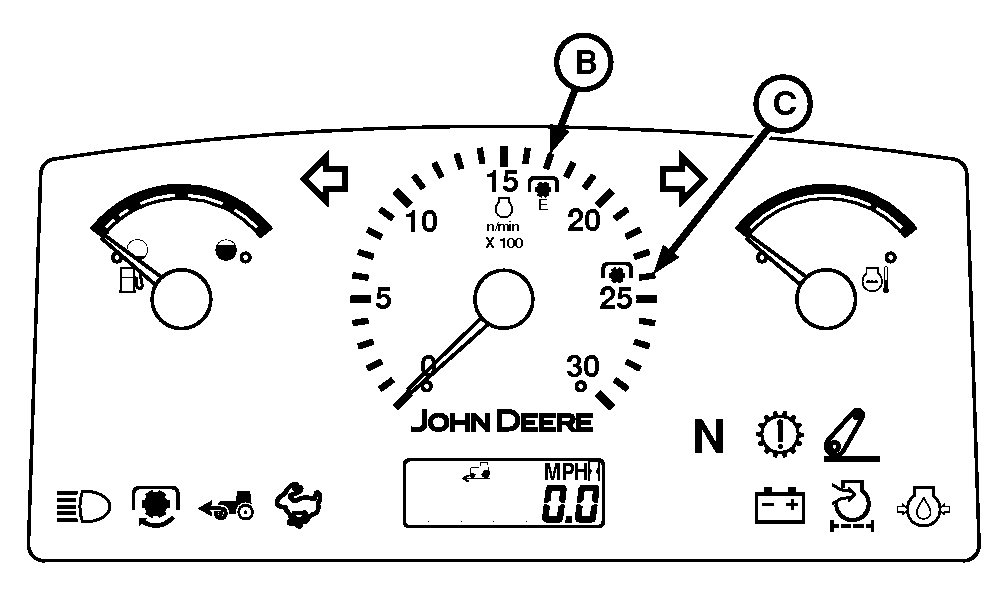

LV9620-UN-11AUG04

A - Hand Throttle Lever

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine will not start if PTO lever is engaged.

1. Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540E	1700
   540	2400 (full power)

   NOTE: When in 540E position, engine speed is mechanically limited to a maximum of 1700 rpm. 540E operation will not engage if engine speed is above 1700 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.

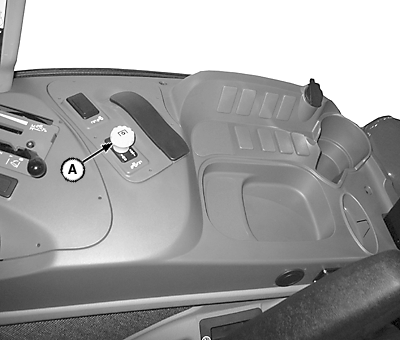

   LV14213-UN-02MAY11

   PTO Control Switch (Cab)


   LV15726-UN-18MAY12

   PTO Control Switch (OOS)

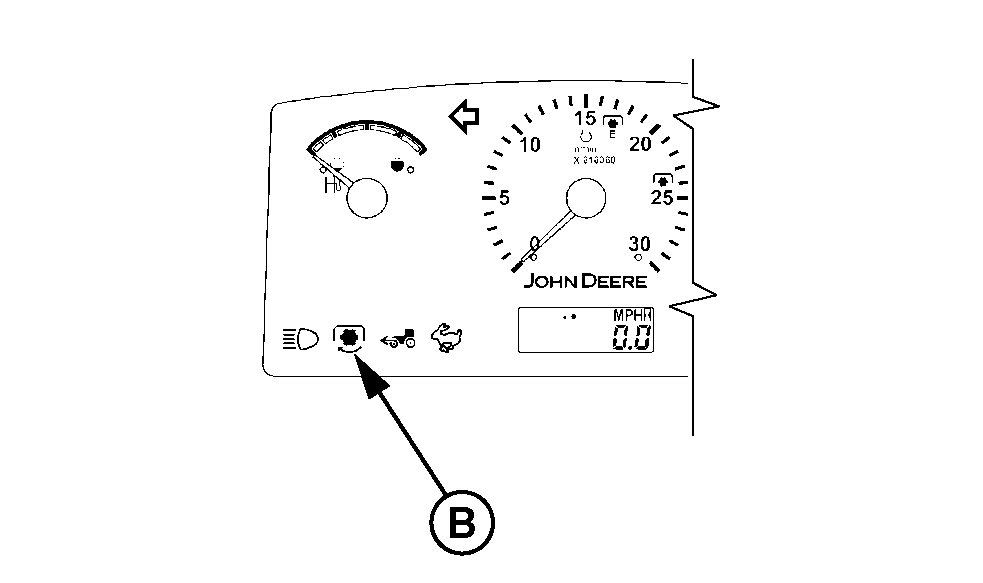

   LV14244-UN-10MAY11

   Indicator

   A - PTO Control Lever

   B - PTO Indicator

   To engage PTO, lift switch knob (A) up to “I” position.

   PTO indicator (B) will light when PTO is engaged.

   IMPORTANT: A warning alarm will sound if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, depress and lift PTO switch knob to reset and engage PTO.

---




3. CAUTION:


   LV14213-UN-02MAY11

   PTO Control Switch (Cab)


   LV15726-UN-18MAY12

   PTO Control Switch (OOS)

   Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting or cleaning PTO driven equipment.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   To disengage PTO, push switch knob (A) down to “O” position.

   PTO brake automatically engages when PTO is disengaged.

---
