Controlling Temperature

LV8415-UN-14JUL03

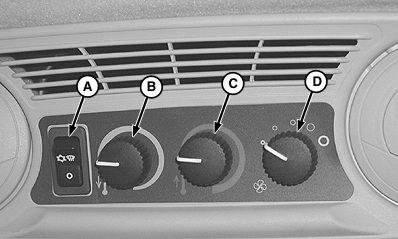

A - Air Conditioning and Deicing Switch

B - Air Conditioning Temperature Control Knob

C - Heater Temperature Control Knob

D - Blower Speed Control Knob

Push top half of switch (A) to turn air conditioning and deicing ON and push bottom half to turn it OFF.

Turn control knob (B) to adjust air conditioning temperature.

Turn control knob (C) to adjust heater temperature.

LV14485-UN-28JUL11

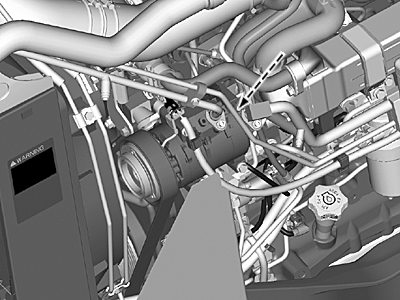

Rear of A/C Compressor

LV12690-19-28APR05

IMPORTANT: This air conditioning system contains: R134a refrigerant, XH-7 or XH-9 desiccant, and PAG oil.
