Adjust Rockshaft Control Lever Friction - MITA Rockshaft
PY4406-UN-10DEC05
PY4385-UN-10DEC05

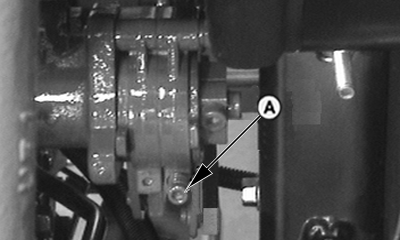

A - Adjustment Set Screw Back Side Of Control Lever

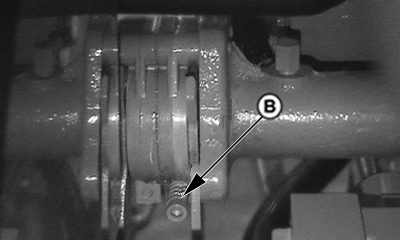

B - Adjustment Set Screw Front Side Of Control Lever
If the rockshaft position control lever or rockshaft draft control lever do not stay in set position, increase lever friction by tightening the set screws for the appropriate lever until the proper friction is obtained.|
PU00210,0000470-19-20120503 |
