Operating Tractor PTO — PowrReverser™

PY16218-UN-11JUL12

Cab Shown; OOS Similar

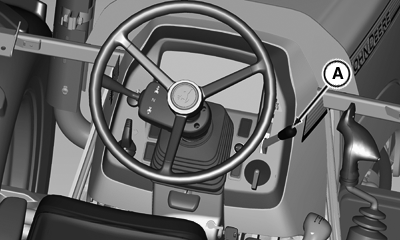

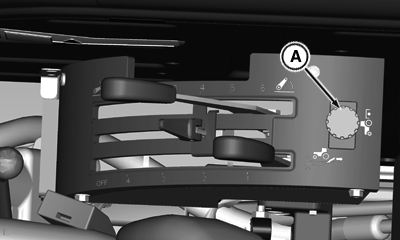

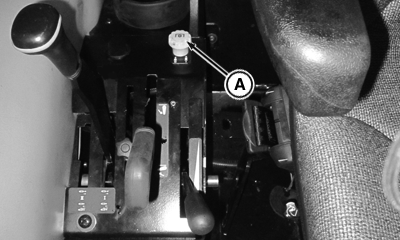

A - Hand Throttle Lever

1. NOTE: Engine will start up with PTO switch (engaged), but PTO shaft does not rotate until switch is reset.

   Depress clutch pedal, start engine and push hand throttle lever (A) forward until tachometer indicates PTO rated speed.

   PTO Rated Speed
   PTO	Engine rpm Speed
   540	2400
   540E	1700

   NOTE: 540E operation will not engage if engine speed exceeded.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.

   NOTE: Do not use PTO speed shift lever to engage or disengage PTO


   PY16046-UN-07JUN12

   OOS Only


   PY16219-UN-14AUG13

   Cab Only


   PY17684-UN-10JAN13

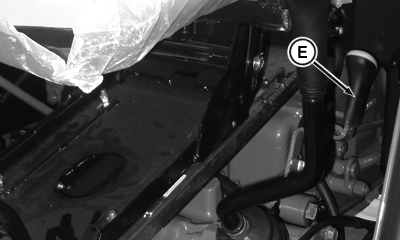

   PTO 540/540E Shift Lever (OOS)


   PY17685-UN-10JAN13

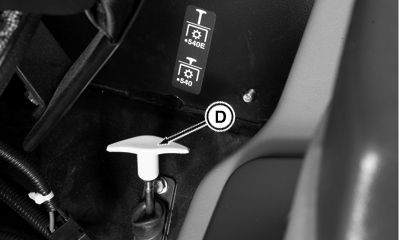

   PTO 540/540E Shift lever (Cab)


   PY17658-UN-30SEP13

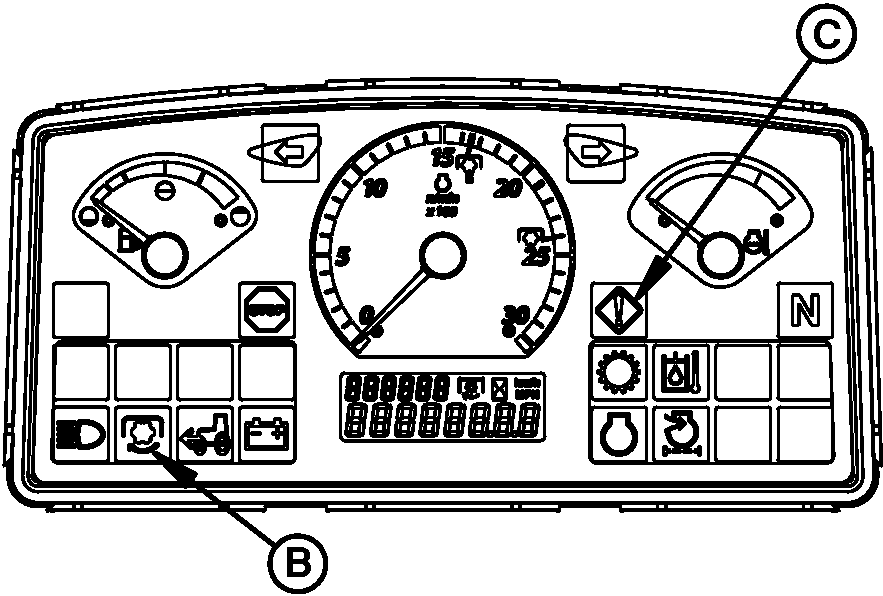

   A - PTO Switch

   B - PTO Indicator Light

   C - Operator Alert Indicator

   D - PTO 540/540E Shift Lever

   E - PTO 540/540E Shift Lever

   Engage PTO:

   Lift switch (A) up to engage PTO.

   PTO indicator (B) will illuminates when PTO is engaged.

   NOTE: If operator is NOT on seat when PTO switch is On:

   • OOS: Operator Alert Indicator (C) will turn ON
   • Cab: Audible alarm will sound



   NOTE: If engine is stopped while PTO is engaged, restart engine, depress, and lift switch knob (A) to reset and engage PTO.

---




3. IMPORTANT: Disengage PTO with switch (A) before changing PTO speed with lever (E) or lever (D).

   Disengage PTO:

   Push down PTO switch (A) to disengage PTO.

   PTO brake automatically engages when PTO is disengaged.

   PTO indicator (B) goes off when PTO is disengaged.
