Convert Category II Hitch to Category I (If Equipped)

PY7310-UN-29JUN07

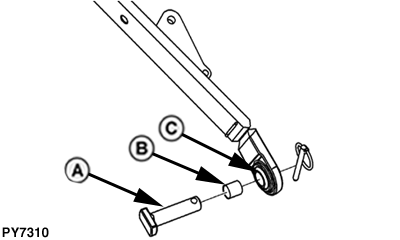

Center Link End

A - Mast Pin

B - Center Link Bushing

C - Draft Link Balls

Center link end is sized for Category II implement attaching pin.

If Category I implements are to be used, the Category II hitch can be converted as follows:

1. Insert reducer bushing (B) in center link end. Smaller implement mast pin (A) is also needed when bushing is installed.

2. Rotate balls (C) in draft link ends to fit over implement pins.

See your John Deere dealer for parts.
