Adjustable Drawbar

LX1031674-UN-19FEB03

PY16188-UN-19DEC12

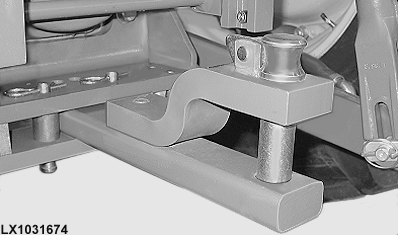

The drawbar is used to pull drawn equipment of all types, particularly PTO-driven implements.

The drawbar hitch is located so as to increase the rear axle load and at the same time slightly reduce load on the front axle.

Besides having a variable swinging range, the drawbar can also be adjusted lengthwise.

Maximum permissible static vertical loads and towable drawbar loads are stated in the "Specifications" section.

NOTE: Towing on public roads with the swinging drawbar set to one side is not permitted!
