Operate Foldable ROPS

CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to specified torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is altered in anyway by welding, bending, drilling or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (e.g. to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

To lower ROPS crossbar (A):

1. NOTE:


   PY8447-UN-21APR09

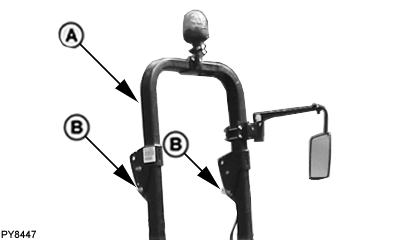

   ROPS—Operating Position


   PY10462-UN-06MAY10

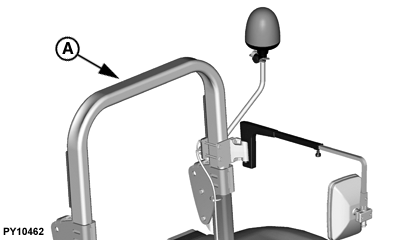

   For Turkey only


   PY8448-UN-21APR09

   Reinstall Pins

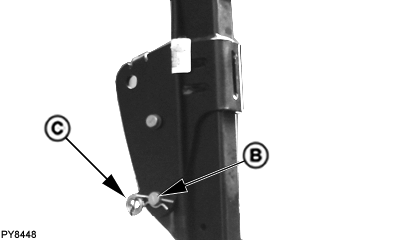

   A - ROPS Crossbar

   B - Headed Pins

   C - Quick-Lock Pins

   Remove beacon light before folding ROPS or it will interfere with the center link of the hitch. In case the beacon light is mounted on the side (when used with canopy) it will interfere with the fender.

   Remove quick-lock pins (C) and headed pins (B).

---




2. Lower crossbar (A) of ROPS onto stops.

3. Reinstall pins (B and C) into holes in ROPS to lock crossbar down.

To put ROPS in operating position:

1. Lift crossbar (A) of ROPS to position shown.

2. Install pins (B) and quick-lock pins (C).
