Seven-Terminal Outlet
PY11371-UN-07JAN11
PY11372-UN-07JAN11

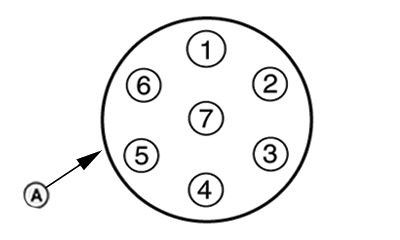

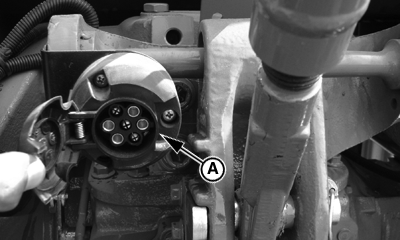

A - Seven Terminal Outlet
Outlet (A) is used to connect lighting devices on trailer or implements.
NOTE: Matching / Mating plug is available through your John Deere dealer.
Seven-Terminal Outlet—Functions & Wire Color (Export, ISO1724 Type)
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Left-hand direction indicator light |
Yellow |
|
2 |
Rear Fog Light |
Blue |
|
3 |
Common Return |
White |
|
4 |
Right-hand direction indicator light |
Green |
|
5 |
Right-hand rear position and marker lights, and rear registration plate illumination device1 |
Brown |
|
6 |
Stop Lights |
Red |
|
7 |
Left-hand rear position and marker lights, and rear registration plate illumination device 1 |
Black |
|
1 The rear
registration plate illumination device shall be connected such that
no lamp of the device has a common connection with both contacts 5
and 7
|
AH98466,00011FF-19-20180117 |
