Jacking Points on Tractor

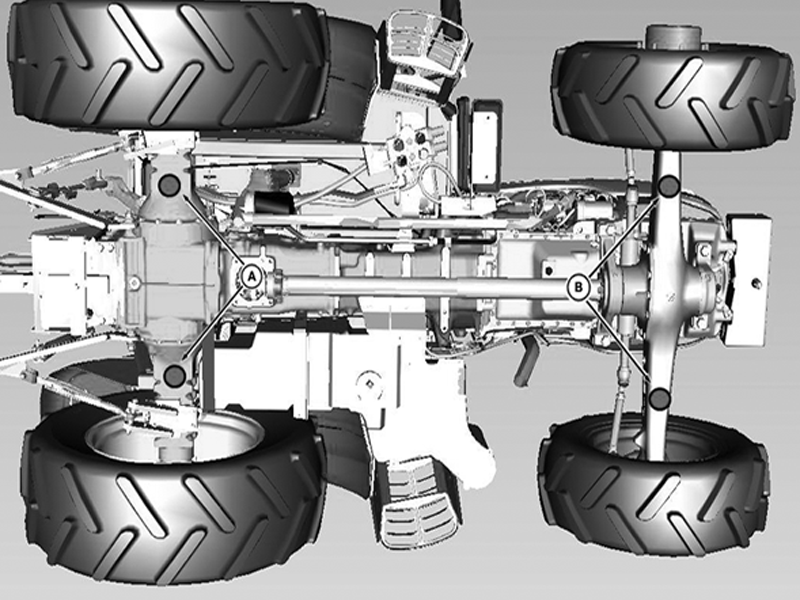

PY12298-UN-28DEC11

A - Rear-End Jacking Point

B - Front-End Jacking Point

Vehicle jack can be applied at rear-end jacking points (A) that is, at the differential casing to jack up the vehicle from the rear side.

To jack up the vehicle from front, apply jack at the front-end jacking points (B) that is, front axle as shown.

CAUTION: Use approved lifting equipment only.

Jack up the tractor on firm & leveled ground only.

Before doing any further work on tractor, first secure it using suitable jack stands. Special John Deere tools can be used for this purpose. These jack stands are available at the nearest John Deere dealer.
